SDR Dual Lane Seitenradar
The SDR Dual Lane side radar measurement system is a reliable tool for precise traffic analysis. It compliments DataCollect‘s side radar product portfolio and can now measure and resolve 2 lanes in 1 direction with precision. Our state of the art, contactless traffic data acquisition system provides you with the essential data needed to make informed decisions regarding mobility.
Thanks to its self calibrating system, setup is a breeze – simply configure on-site via smartphone and instantly verify measurement quality. For maximum flexibility, we offer optional 4G/LTE data communication, allowing remote system control and data transmission.
Features
- SELF CALIBRATING

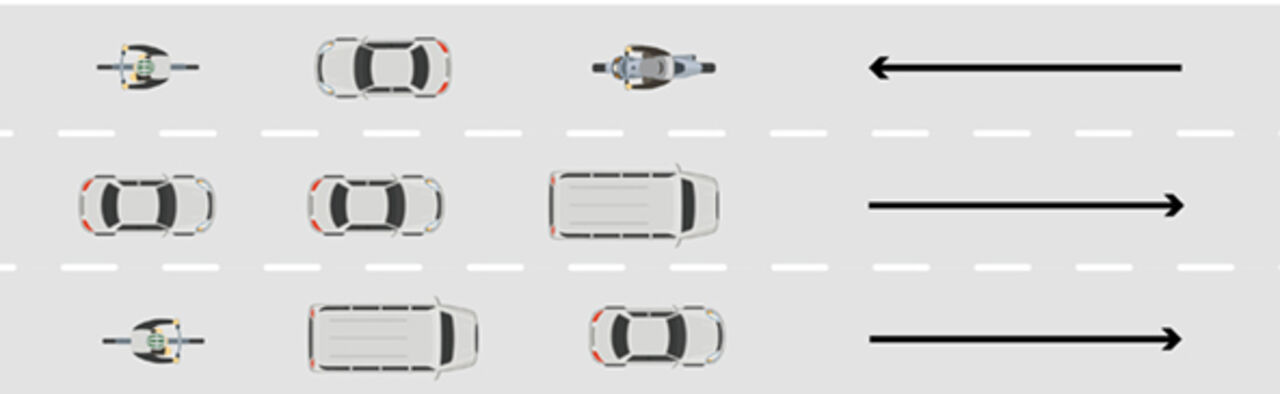

- DATA ON 2 LANES SIMULTANEOUSLY
- CONSISTENT HIGH DATA QUALITY
- STORAGE FOR MILLIONS OF DATA RECORDS
- LANE SPECIFIC INDIV. VEHICLE DETECTION
- OUTPUT OF DATE, TIME
- OUTPUT OF OBJECT LENGTH
- OUTPUT OF SPEED
- FREELY CONFIGURABLE LENGTH CLASSES
- FLEXIBLE INSTALLATION HEIGHTS
- FAST AND SECURE INSTALLATION
Precise and energy-efficient
In mobile applications, powered by a rechargeable battery, measurement campaigns of several weeks are possible. Various optional power supply options, such as using a 230 V connection or employing our solar system, allow for year-round operation of the SDR Dual Lane at permanent measurement points.

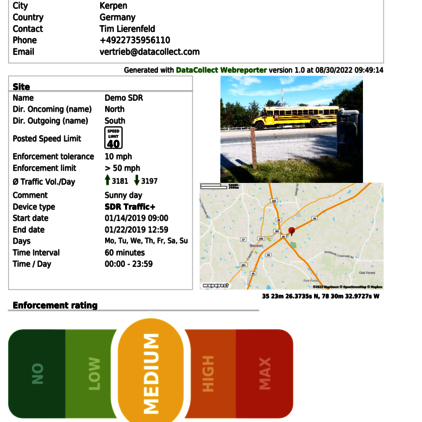

SDR Evaluations
| Sensor type | Microwave |
| Frequency | Typ. 24,125 GHz |
| Speed measuring range | 3 - 199 km/h or 2 - 130 mph |
| Resolution | 1 km/h; 0,1 m or 1 mph; 3 ft |
| Units | Metrical or Imperial |
| Memory | 2 GB |
| Data format | V, date, time, direction, length (PVR) |
| Data rate | Up to 115200 baud |
| Communication | Bluetooth® (local) or 4G/LTE (global) |
| Monitoring | On-site with smartphone, remote monitoring via 4G/LTE |
| Setting | Via smartphone/table or 4G/LTE |
| Installation roadside distance | Up to 8 m |
| Installation height | Up to 7 m |
| Ambient temperature | - 20 °C - + 50 °C |
| Weight | 1,7 kg without battery |
| Dimensions (HxWxD) | 230 x 220 x 160 mm |
| Housing material | PP, PC |
Additional features
| Update | Flash Update |
| Webapps | Additional features and functions are available via WebApp Shop |
| Gain calibration | Manual or automatic (AUTOGAIN) |
| Length calibration | Manual or automatic (AUTOCAL) |
Software
| myTrafficData | Web-based application, reporting and data management software |
Energy supply
| AkkuPack | 12 V / 18 Ah rechargeable battery incl. connection cable |
| PowerUnit | 100 - 240 VAC main power supply incl. 12 V / 7 Ah rechargeable battery (night power) |
| Power supply unit | 100 – 240 (permanent power) |
| SolarSystem | 80 / 100 W solar panel |
Installation
| SmartBracket deep | Variable pole mounting installation bracket will carry a Powerpack or PowerUnit |
Accessories
| 4G/LTE modem | Internal 4G/LTE modem for global setup, monitoring and file transfer |
| Smartphone/tablet | Smartphone/tablet with Android OS and class1 Bluetooth® module |
