ARGOS permanent

ARGOS permanent  is a ground breaking AI-based video detection system that provides real-time insights into on-site traffic. ARGOS permanent instantly transmits the collected data via Ethernet or LTE. You have the option to securely store your data in our Cloud myTrafficData, or directly integrate it into your own traffic management system. Thanks to the AI-based data evaluation in the device, meaningful data is available to you without delay.



ARGOS permanent  captures traffic flows at intersections, multi-lane roads, roundabouts, and cycling and pedestrian areas.

Features

  • VEHICLE & BICYCLE DETECTION
  • PEDESTRIAN DETECTION
  • UNIQUE RE-COUNTING FUNCTIONALITY
  • REAL-TIME DATA
  • ON-BOARD DATA PROCESSING
  • 100% GDPR COMPLIANT
  • CONSISTENT HIGH DATA QUALITY
  • AVAILABLE IN POE+ AND LTE
  • UNIVERSAL INTERFACES

Detects 11 object classes

Configuration, Evaluation & Database with myTrafficData 2.0

The right system for your needs - Our ARGOS permanent models

Applications

  • MOBILE DATA COLLECTION
  • BICYCLE COUNTING IN MIXED TRAFFIC
  • PEDESTRIAN DETECTION

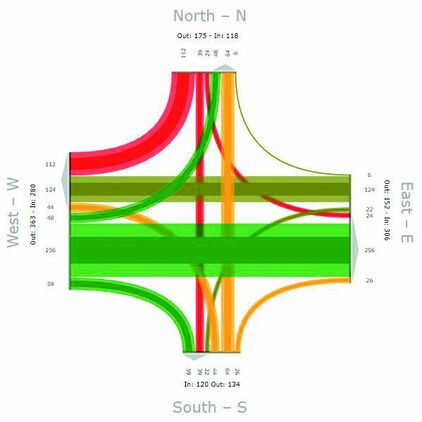

  • TURNING MOVEMENTS
  • COMPLEX TRAFFIC SITUATIONS
  • ORIGIN & DESTINATION ANALYSIS
  • BI-DIRECTIONAL DETECTION
  • MULTI-LANE DETECTION

Dimensions (approx.)230 mm x 120 mm x 75 mm (W x H x D)
Frame Rate15 frames per second (fps)
Required Operating Voltage12 V
Power Consumption19 Watt
Ethernet10/100/1000BASE-T
Operating Temperature-10°C to +70°C
Wind Load90 km/h
Storage180 GB
UnitsMeters
MountingSecured with pipe clamps
Mounting Heightup to 6.00m
Weight including Bracket1,23 kg

Your measurement has never been safer!

The Recounting feature

With ARGOS, you not only have the ability to capture precise traffic data but also the unique capability to adjust vehicle relationships retrospectively. Even after the measurements are completed, our Cloud offers you the ability to modify the detection areas as desired, allowing for recalculated data. This ensures that your count result is always accurate – even if the requirements of the result data has changed. This unique function is an invaluable advantage that no other system can offer! ARGOS permanent is your companion to the Smart City!

We're happy to provide you with advice!

Do you have questions about individual products, applications or interfaces? Do you have specific requirements for simple or complex measurements? Let us find a solution together.
